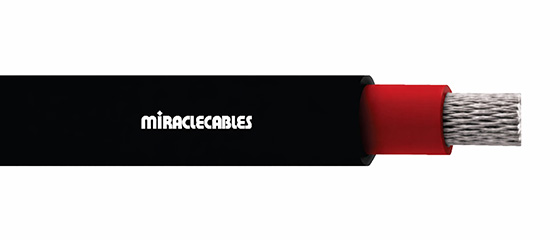

Solar Cables

Full Catalogue

Product Specification

Our Products

Uninyvin Cable
Fire Survival Cables
- Single Core Unarmoured
- Multi Core Armoured
Instrumentation Cable
- Multi Pair Overall – Shield Unarmoured Cables
- Multi Pair Individual & Overall Shielded Unarmoured
- Multi Pair Overall-Shield Armoured
- Multi Pair Individual & Overall-Shielded Armoured
Single Core / Hook Up Wires
- Flame Retardant Low Smoke Cables
- Heat-resistant Flame Retardant (HRFR) Cables
Harmonized Cable
- H05V-K / H05V2-K
- H07V-K/ H07V2-K
Halogen Free Flame Retardant
- H05Z-K / H07Z-K
- Halogen Free Cables
UL Approved
- UL Cables UL Style – 1007
- UL Cables UL Style – 1015
- UL Cables UL Style -1569
- UL Cables UL Style -10070
- UL Cables UL Style -10269
- UL Cables UL Style -1284
- UL Cables UL Style -1032
- UL Cables UL Style -2517
- UL Cables UL Style -1277
Control Cable
- XLPE Control Cables IS 7098/Pt1/1988
- JB-500 CY PVC Copper Screen Braided with Colour Coding
- JB-500 SY PVC Steel Screen Braided with Colour Coding
- JZ-500 SY PVC Steel Wire Braided with Number Coding
- JZ-500 CY PVC Copper Screen Braided with Number Coding
- Control Cables – JZ-500 CY PUR Copper Screen Braided with Number Coding
- JZ-500 PUR Unshielded Number Coded
- Multi Core-PVC Flexible As per IS 694
- Single Core – Flexible As per IS 694
- H05VV-F and H07VV-F
- JB-500 Unshielded Colour Coded
- JZ-500 Unshielded Number Coded
- PVC Control Cables IS 1554/Pt1/1988
Data Cables
- LiYY – PVC Unshielded
- LiYCY – PVC Copper Braid Shielded Cable
- LIYY (TP)–PVC Unshielded Twisted Pairs
- LiYCY-(TP) Cable PVC, Shielded
- LiHH – Halogen Free Unshielded
- LiHCH – Halogen Free Copper Braid Shielded
- LiHCH (TP) – Halogen Free Copper Braid Shielded, Twisted Pairs
- LiYY UL – Unshielded Cables as per UL 2464
- LIYCY UL – Shielded Cables as per UL 2464
RS 485 Modbus Fieldbus
Power Cables
- Copper conductor, XLPE Insulated and PVC Sheathed Armoured 1100 V as per IS 7098-1-1988
- Copper conductor, PVC Insulated and Sheathed Unarmoured 1100 V as per IS 1554-1-1988
- Copper conductor, PVC Insulated and Sheathed Armoured 1100 V as per IS 1554-1-1988
- Copper conductor, XLPE Insulated and PVC Sheathed Unarmoured 1100 V as per IS 7098-1
Welding Cables
- IS 9857 / BS EN 50525-2-81 / BS 638-4 / DIN VDE 0282
- Insulated & Sheathed
Rubber Cables
- H07RN-F Rubber-Sheathed – Single Core Cable
- H07RN-F Rubber-sheathed Multi core Cable
Automotive Cables
- AV – Low Voltage Cables
- AVS – Low Voltage Cables
- AVSS – Low Voltage Cables
- DIN Cables – FLRY-A
- DIN Cables – FLRY-B
- FLY Cables
Battery Cables
- PVC Single Core Cables
- PVC Multi Core Cables
- HRFR Uninyvin Battery Cable
Flat Submersible Cables
- Flat Submersible Cable-PVC Insulated
- Flat Submersible Cable-XLPE Insulated
⁠Elevator Flat Cable
- PVC Flat Elevator Cable
- H05VVH6-F / H07VVH6-F (PVC Flat Elevator Cable)
Silicon Cable
- SiF / GL – Silicone Single Core with Glass fibre + lacquering braiding cable
- SiF – Silicone Single Core Cable
- SiHF – Silicone Control Cable
- SiHF-C-Si – Silicone Multi-Core Braided Cable
- SiHF-GLP-Silicone Multi Core Cable
- Single Core V Cables – 1.1 KV, 3.3 KV, 6.6 KV
Servo Cable
- PVC Servo Shielded Cable 0.6 / 1 KV with Control Pairs
- PVC Servo Shielded Cable 0.6 / 1 KV
- PVC Servo Unshielded Cable 300V / 500V
- PUR Servo Shielded Cables 600V / 1000V
VFD Cables
- VFD-Shielded Power Cable
- VFD-Shielded Power Cable with Brake & Signal Pairs
Sensor Cable
- PVC Shielded Cable
- PVC Unshielded Cable
- PUR Unshielded Cable
Drag Chain Cables
- PVC/PVC Servo FD YY – Unshielded Cable
- PVC/PVC Servo FD YY – Shielded Cable
- TPE/PUR Servo FD – Unshielded Cable
- TPE/PUR Servo FD – Shielded Cable
- PVC/PVC Control FD YCY – Shielded Cable
Spiral Cable
- PVC/PVC Spiral Cable
- PVC/PUR Spiral Cables
Solar Cables
UNISIL
Anticapillary Cables

Application

Solar cables are intended for use in photovoltaic power supply systems and similar applications as free hanging, movable, fixed installation and buried in ground in construction covered systems. The cables can be used indoor, outdoor, in hazard explosion areas, in industry and agriculture.

Properties

Standard : Cable as per EN 50618 / 2015
Flame propagation acc. to EN 60332-1-2
Low smoke emission
Enhanced thermal, electrical, mechanical and fire properties
UV resistant

Construction

Conductor : ATC According to EL 60228, class 5
Insulation : Halogen free XLPO compound - According to Table B1
Core Identification : Red, black or natural
Sheath : UV resistant, cross linkable, halogen free (XLPO), flame retardant compound for sheath over insulation.
Cable Colour : Red, black, black with red strip
Jacket : Halogen free compound - According to Table B1
